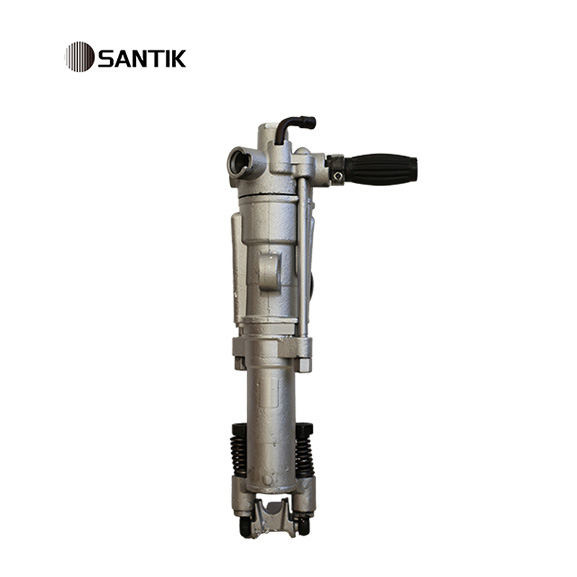

Yo20 mejor plataforma de perforación portátil-Accesorios-Santik (Shenyang) Mining Equipment Co., Ltd.

El yo20 está diseñado especialmente para perforar agujeros de voladura y realizar otras tareas de perforación de rocas en canteras, pequeñas minas y diversos proyectos de construcción. Es muy adecuado para perforar agujeros de voladura horizontales, verticales e inclinados en rocas medias y duras. Cuando está equipado con patas de aire FT - 100, puede perforar agujeros explosivos en varias direcciones y ángulos.

POSDATA：The air pressure for the YO20 rock drill should be maintained at 0.4-0.5 MPa. When drilling high-hardness rocks, the air pressure can be slightly increased. However, if the pressure exceeds 0.6 MPa, the machine experiences increased vibration, making operation difficult. The machine can still operate stably with air pressure below 0.4 MPa, but the efficiency will be lower.

	YO20
Peso (kg)	20.5
Longitud (mm)	561
Diámetro del cilindro (mm)	63
Recorrido del pistón (mm)	55
Presión laboral (mpa)	0.4`0.5
Presión del agua (mpa)	0.2~0.3
Diámetro interior del conducto de aire (mm)	19
Diámetro interior de la tubería de agua (mm)	8
Consumo de gas (l/s)	≤33 (2Mò/min)
Energía de impacto (j)	≥26
Frecuencia de choque (hz)	≥33
Diámetro de perforación (mm)	36~42
Profundidad máxima de perforación (m)	5
Tamaño del mango del cuchillo (mm)	H22*108±1

Preguntas frecuentes：

Do you accept customize? Yes, we have our own factory.

Can you print our logo or company name? Yes, we could print your logo or company name on the display or the machine shells.

Can you design for us? Yes, we have professional designer, please tell us your requirements, well do it for you.

Is it possible to get a sample at a special price? Yes, to demonstrate our confidence in our machines, we can offer distributors a sample machine at a very favorable price to support their initial advertising efforts.

How to operate? We offer three methods: All machines come with a manual that guides you on assembly, adjustment, and usage. Our sales staff will provide one-on-one assistance. you can download the operation manual from the Download Center on our website.

What is the delivery time? The delivery time for 30 sets of machines is about 5 days, and for up to 100 sets, it is within 15 days. For 300 sets, the delivery time is within 1 month. Larger quantities will require communication to confirm the exact delivery date.

What is the warranty period? The warranty is one year (excluding normal wear and tear of parts.

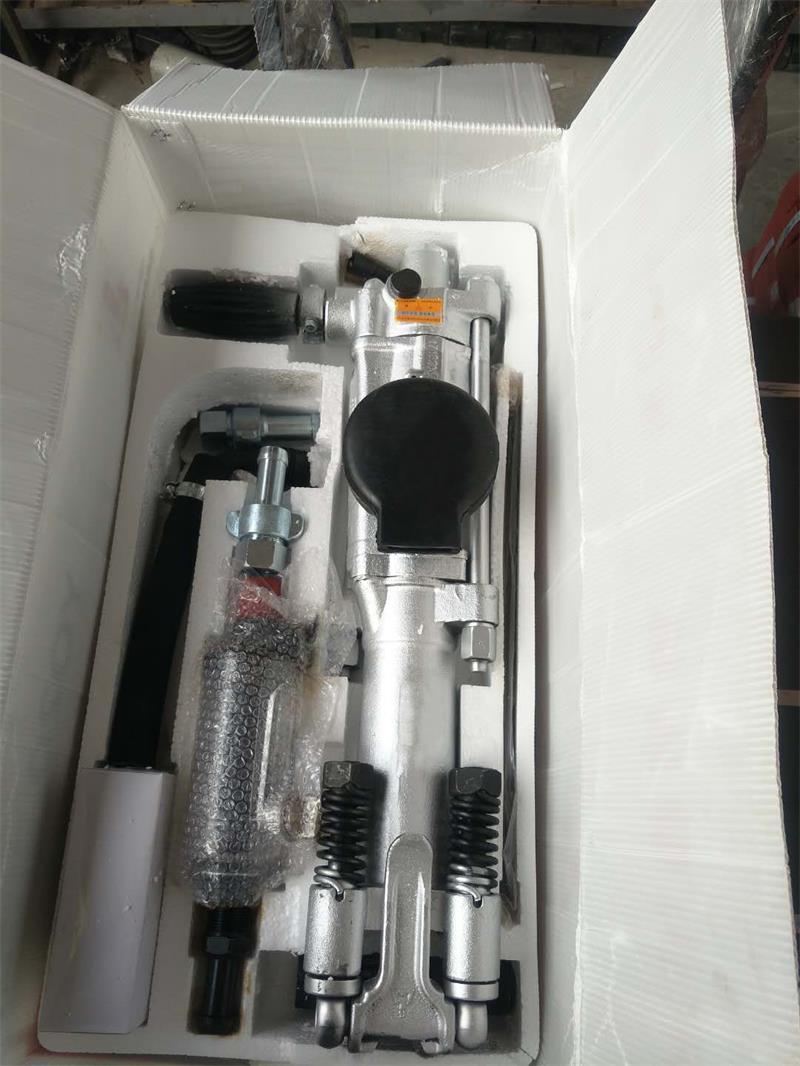

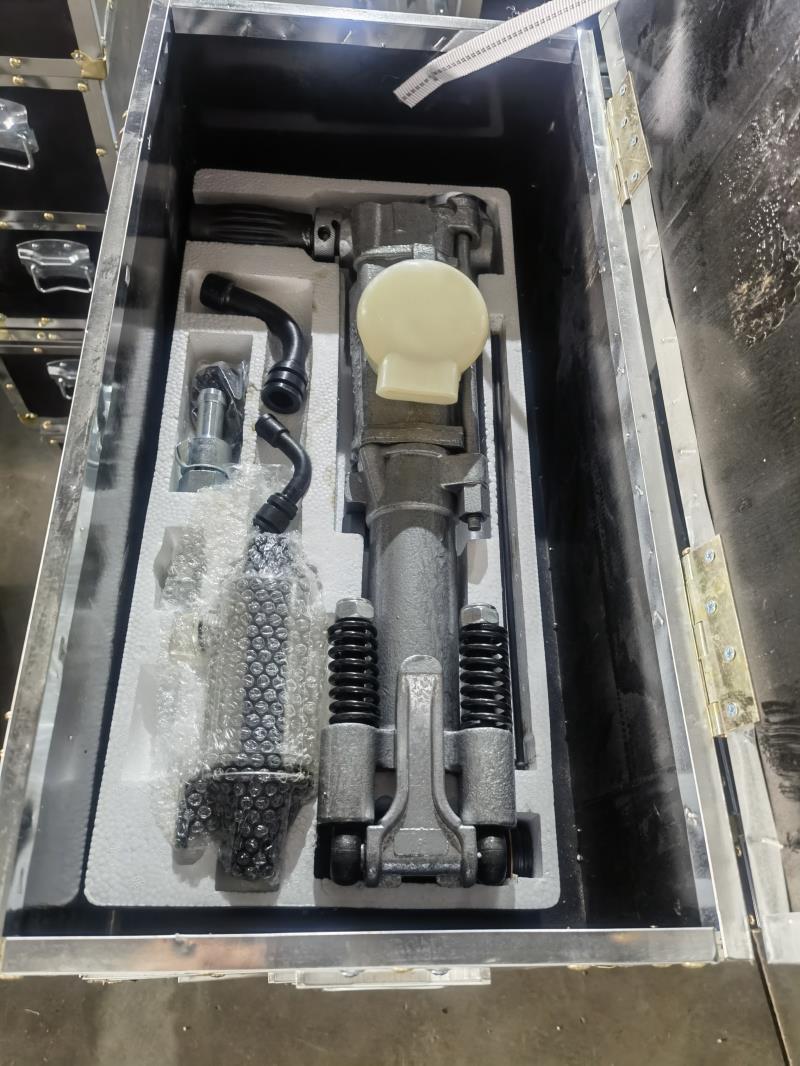

What is the product packaging? Professional export packaging, including wooden boxes and cartons.
